Modular ballistic Safety-Wall
Mobile. Bullet-proof. Adaptable.
Our modular safety system made of specialized ultra-high strength steel protects for a wide range of angles and applications.
The swift assembly and dismantling helps you to solve your safety issues particularly for safety critical areas and/ or during events, in hotels, meetings or conferences and offices.
The combination of several walls provides rapid protection in indoor and outdoor meeting areas. We have integrated a frame structure in the single wall segments and designed overlaps at joints and interfaces to avoid any soft spots.
Our key advantages are
- Rapid and simple assembly without any tools
- Integrated frame with full protection at links and interfaces
- Very versatile assembly in length, angle and height
- Individual design with wide range of covers in different materials
- Size of transportation and storage box adjusted to standardized dimensions (Euro-pallet)
The Safety-Box
Solve your safety issues with our safety-box. One shipping unit/ safety-box contains:
- 3 wall modules
- 1 base plate
- 1 spacer plate for 90° assembly/ alignment
- 1 connector for multiple wall layouts

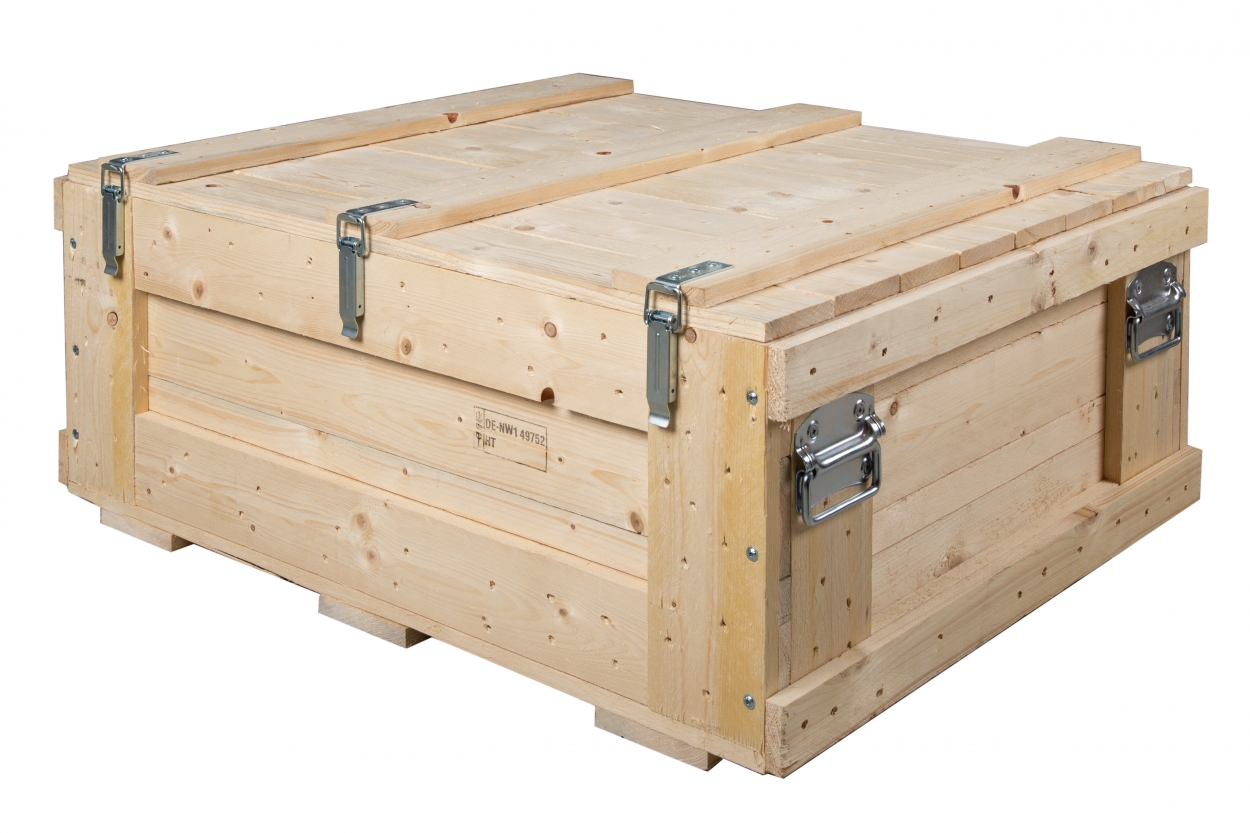

- 1 box for transport and storage
Rapid Assembly and Dismantling

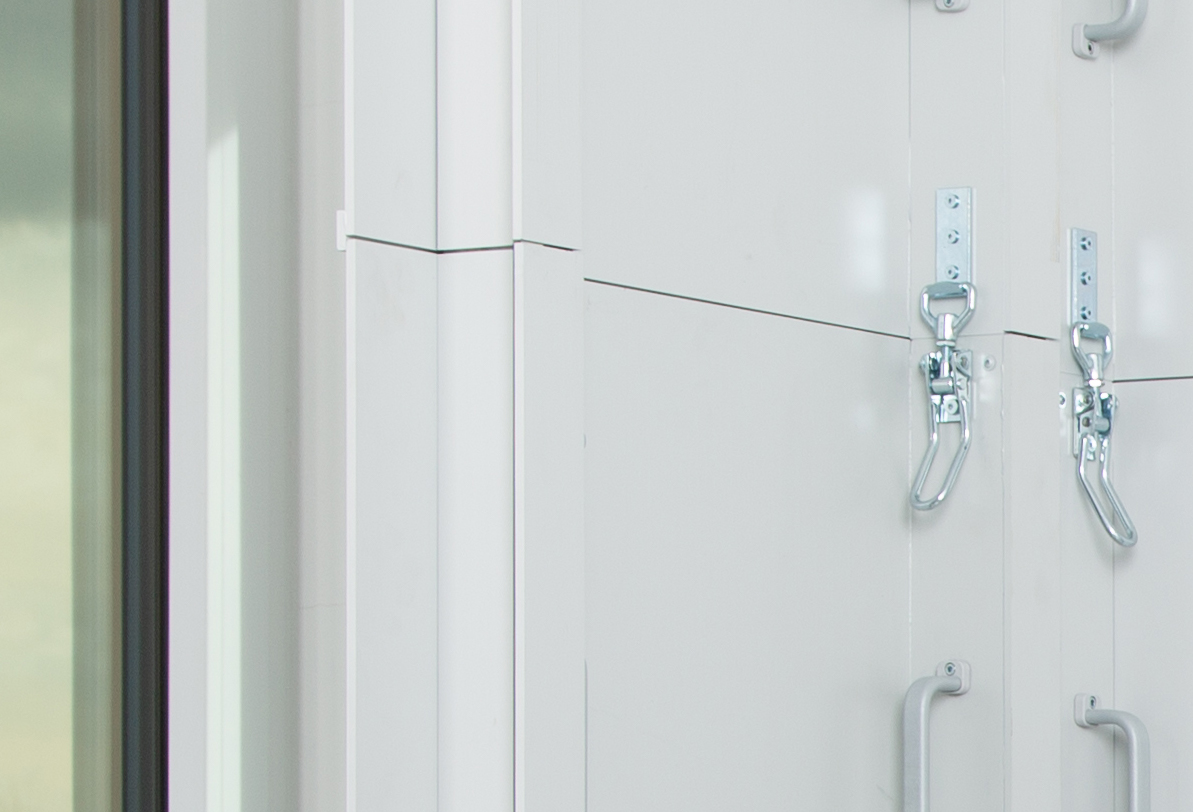

You do not need any tools of lifting aids for assembling and/ or dismantling. The modules can be assambled in arbitary sequence on the base plate. The wall segments are simply plugged on integrated inserts and locked by clamps. Integrated handles allow the assembly with two individuals in less than one minute.

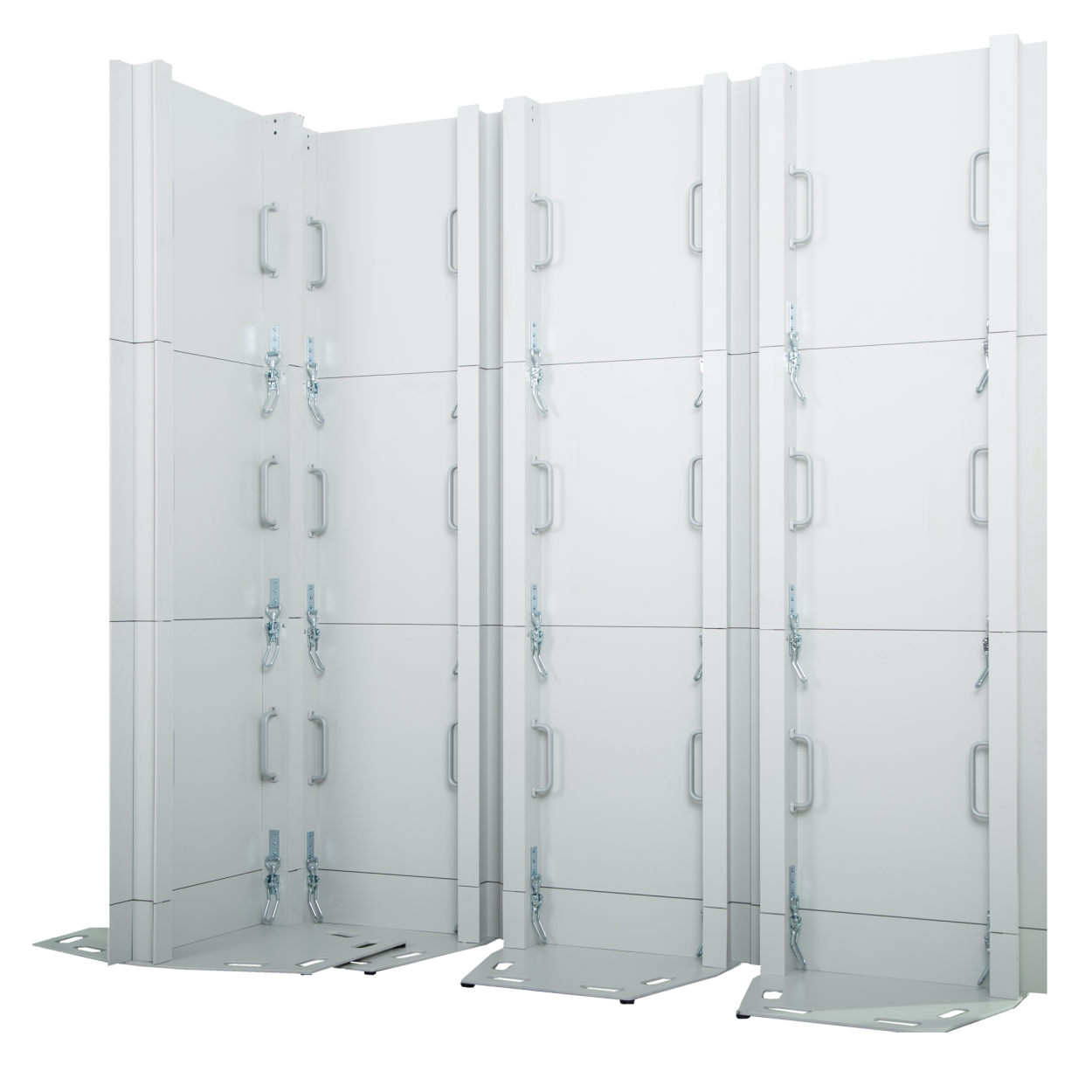

Adapt the alignment and configuration of our bullet-proof wall to your specific safety situation. The system can be assembled in different heights, as straight walls, corners and bends with angles of between 0° and 30°. The modular design is devised to allow a rapid assembly, to extend and combine single walls to wall clusters and to replace single wall segments or swap covers.
For outdoor application
With uneven ground condition we provide a
connector with which you can clamp walls and
generate more stability.
Full protection
Our modular walls are bullet-proof all-over their surface. Links and interfaces have additional material or overlaps. Protection is guaranteed if the assembly and/ or alignment of several walls are in accordance with our safety and assembly instructions. This applies to indoor or outdoor situations.
The modules have elastic supports and are secured by additional spot weld bolts. This helps to minimize the welding heat and safeguard that the specialized steel remains fully intact.
Discreet protection

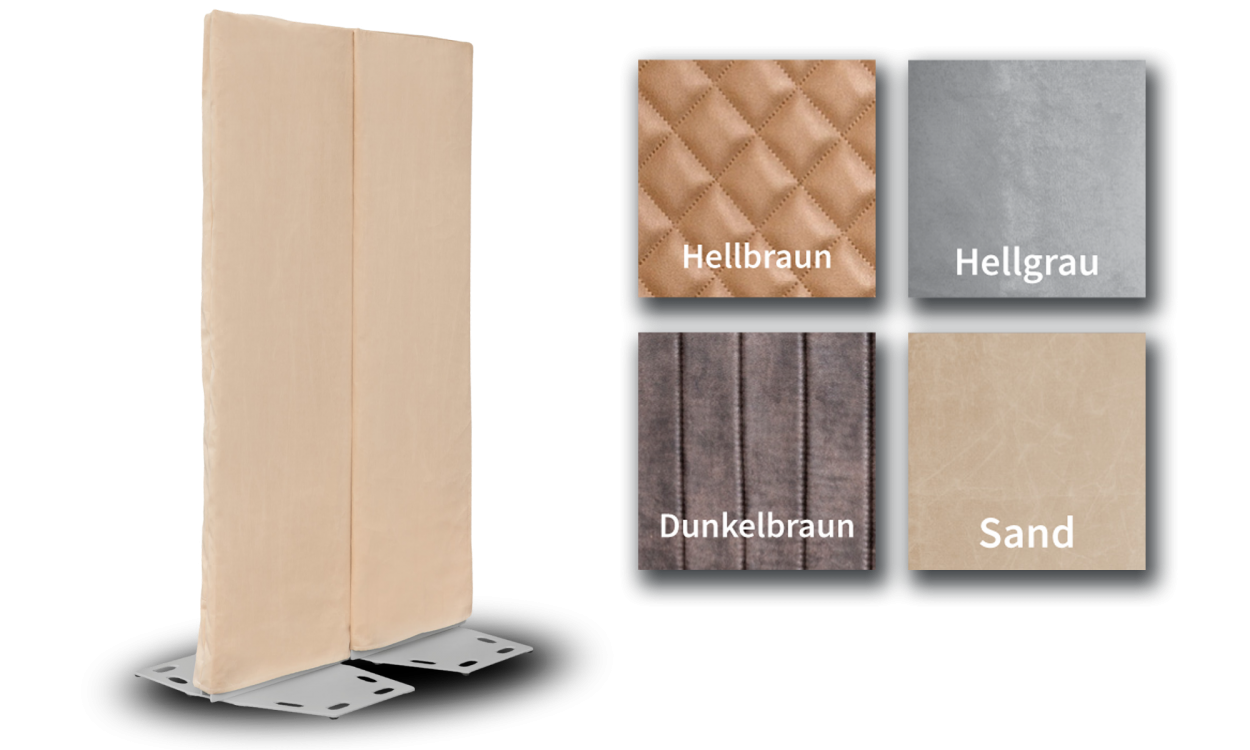

We provide a wide range of different covers for wrapping the bullet-proof wall. The covers can be customized by printing your company logo or any other image.
Just coat the bullet-proof wall by zipping your customized cover.
-
Covers for Innosafesprotect ballistic Safety-Wall
